CE High Technique Single Girder Semi Gantry Crane With Hoist 0~8m/Min

Brand Name : SGY

Model Number : semi gantry crane

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : USD 10000

Payment Terms : L/C, T/T, Western Union

Delivery Time : 50 work days

name : Single Girder Travelling Semi Gantry Crane

keywords : Semi Gantry Crane With Hoist

Color : Customized Color Acceptable

Control method : cabin control/wire rope remote control

Lifting mechanism : Electric hoist

Power source : User Requirments

After-sales Service Provided : online support

Lifting speed : 0~8m/min

Warranty : 1.5 years

Application : Outdoor

Contact Now

High Technique Single Girder Travelling Semi Gantry Crane With Hoist

Semi Gantry Crane Introduction

The semi-gantry crane is based on the general gantry crane, and is composed of the span structure of the crane, the lifting and transverse mechanism, the long-term mechanism, and the electrical control system. The hoisting and traveling mechanism of the half-gantry crane is an electric hoist. The electric hoist can move horizontally on a pair of rails under the beam. Only one side supports the landing legs that walk on the ground track. On the other side is a tail truck running on the workshop wall.

Semi Gantry Crane Specification

item	value
Feature	Gantry Crane
Applicable Industries	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Advertising Company
After Warranty Service	Online support
Local Service Location	None
Showroom Location	None
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2021
Warranty of core components	1.5 years
Core Components	Engine, Gearbox, Motor
Condition	New
Application	Outdoor
Rated Loading Capacity	5 ton, 20 Ton
Max. Lifting Height	6m, 9m
Span	12-30m
Place of Origin	China
Brand Name	SGY
Certification	ISO CE BV
Warranty	1.5 years
Weight (KG)	32545kg
Product name	Outdoor Gearbox Engine Electric Hoist Gantry Crane for Sale
After-sales Service Provided	Online Support
Descrption	Electric Hoist Gantry Crane
Control Method	Cabin Control
Girder Type	Single
Lifting speed	0~8m/min
Power Source	3 Phase 380V 50hz
Lifting mechanism	Eliectric Hoist
Color	Customer Requirements
Main electrical parts	Famous Brand

Semi Gantry Crane Features

1. The structure is reasonable
2. Good performance
3. Travel safely and reliably
4. Spacious carriage, wide view
5. Excellent ability to exchange parts.

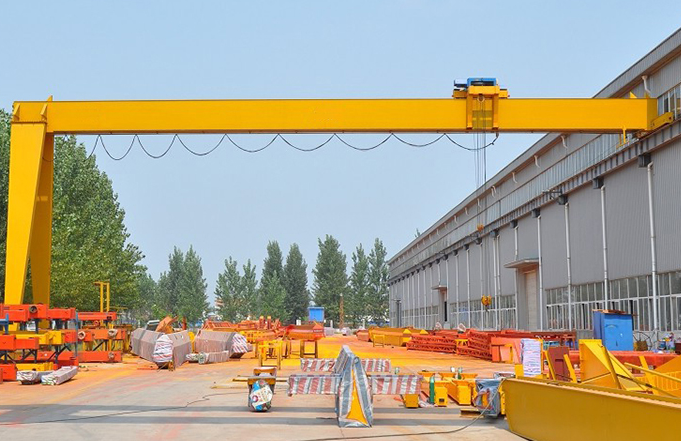

Semi Gantry Crane Images

CE High Technique Single Girder Semi Gantry Crane With Hoist 0~8m/Min
